Domino Cx150i Large Character Inkjet Printer
Maximum Quality in High-Resolution Printing on Non-Porous Surfaces

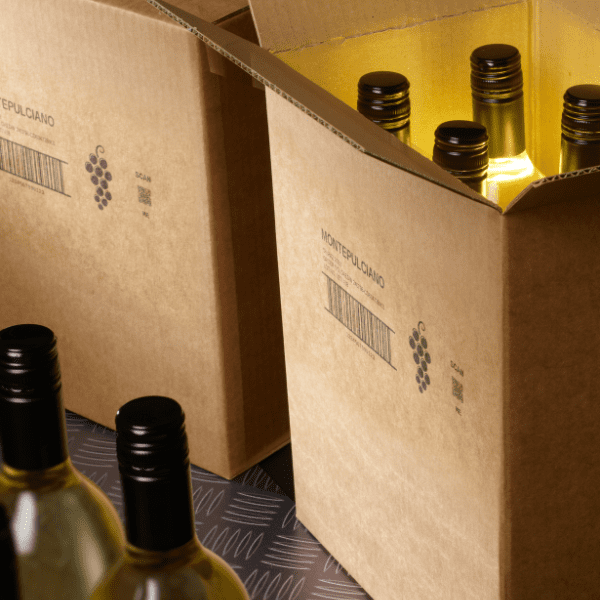

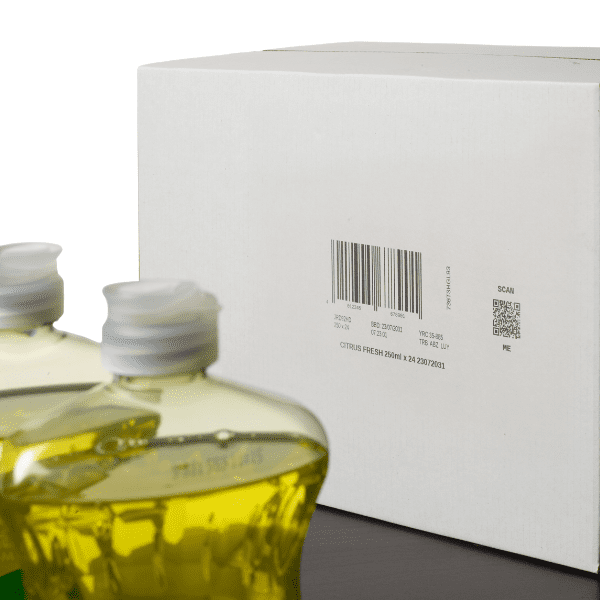

Domino Cx150i is a high-resolution inkjet printer designed to deliver high, consistent print quality on non-porous surfaces, enhancing the appearance of the product and the brand directly on the packaging.
Thanks to a wide range of connectivity options, the system integrates easily into existing production lines and is Industry 4.0 ready, with simple connections to ERP and MES systems and to the main coding automation software.
The QuickStep touchscreen interface makes operations intuitive: settings can be adjusted quickly and new print layouts can be created easily, reducing setup times and simplifying operators’ work.
The system is designed to ensure production continuity and minimise maintenance. Ink can be topped up during production, no compressed air is required, and the use of UV inks with LED lamps ensures energy efficiency and a more sustainable approach to industrial coding.
Why Choose the Domino Cx150i Large Character Inkjet Printer

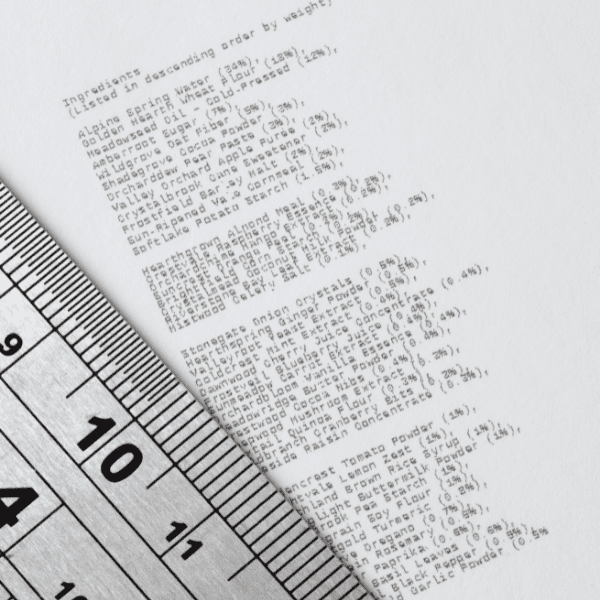

High-resolution printing up to 600 dpi horizontally, with high accuracy and consistent code quality even on large surfaces.
Speeds up to 200 m/min at 100 dpi, with scalable performance depending on the selected resolution.
The Domino Cx150i inkjet printer uses high-contrast UV inks supplied in low-waste 500 ml flexible pouches, with efficient curing via UV LED lamps and reduced environmental impact.
Technical Information
Ink Base
| Ink base | Cx1-Inkbase A |
| Description | Cx150i ink base for UV inks |
| Dimensions | Width 167.0 mm / Depth 276.1 mm / Height 230.5 mm / Weight 7.3 kg (not included: screw, power button, latch, connector cover, bracket) |
| Internal ink tank | 50 ml |
| Power supply | Input 100-240Vac, 50-60Hz, 2A |
| Power connector | 6 mm DC power jack from external “brick” power supply (included) |
| External connection options | 1 × 24 Vdc power input, 1 × encoder input, 3 × I/O connectors, 2 × USB (Type A), 2 × RJ-45, 2 × IX |
Printhead
| Cx1-PH 32 A | Cx1-PH 65 A | |
|---|---|---|
| Description | Cx150i 32.5 mm printhead for UV inks | Cx150i 65.0 mm printhead for UV inks |
| Conduit length options | 1.5m and 3.0m | 1.5m and 3.0m |
| Dimensions | Width 61.0 mm / Depth 212.6 mm / Height 136.4 mm / Weight 1.92 kg | Width 61.0 mm / Depth 223.8 mm / Height 136.4 mm / Weight 2.05 kg |
| Maximum print height | 32.5 mm | 65.0 mm |
| Vertical resolution | 300 dpi | 150 dpi |
| Horizontal resolution | up to 600 dpi | up to 600 dpi |
| Nozzle-to-substrate distance | 23.3 mm | 32.7 mm |
TouchPanel
| User interface | 7″ or 10″ touchscreen interface with QuickStep software |
| Dimensions | 7″ Width 182 mm / Depth 37 mm / Height 121 mm / Weight 0.8 kg 10″ Width 256 mm / Depth 37 mm / Height 166 mm / Weight 1.2 kg |
System Specifications
| Operating temperature | 5-40°C |
| Operating relative humidity | 10–90% RH (non-condensing, maximum increase of 10 °C per hour) |
| Finish | Brushed stainless steel |
| Protection | IP4X |
| Communication | Ethernet / Dynamark protocol, EDC (serial, TCP, USB), Domino Cloud Interface (DCI), Domino Coding Automation |
| Print speed | max. 200 m/min @100 dpi, 100 m/min @200 dpi, 70 m/min @300 dpi, 47 m/min @450 dpi, 35 m/min @600 dpi |
| Inks* | High-contrast UV inks supplied in low-waste 500 ml flexible pouches |
| Recommended UV lamp specifications | 395 nm UV lamp with an intensity of 8–12 W/cm² over 20 mm of travel and at a distance of 5 mm, capable of ensuring effective curing up to a linear speed of 70 m/min.** |
* This product is equipped with a quality management system that allows operation exclusively with Domino electronic components and uses dynamic security measures to prevent the use of non-Domino components. Periodically, Domino will release electronic component updates to maintain the effectiveness of the quality management system.
** UV curing performance depends on numerous variables; therefore, tests are always required to evaluate performance in a specific application.
