Bbull Alpha-X Level Control System


System for checking correct filling of containers with liquid and solid products

The Bbull Alpha-X level control system inspects transparent or opaque glass containers, plastic, PET and cans. It is suitable for products such as beer, spirits, soft drinks, water, juices, oil and chemicals.

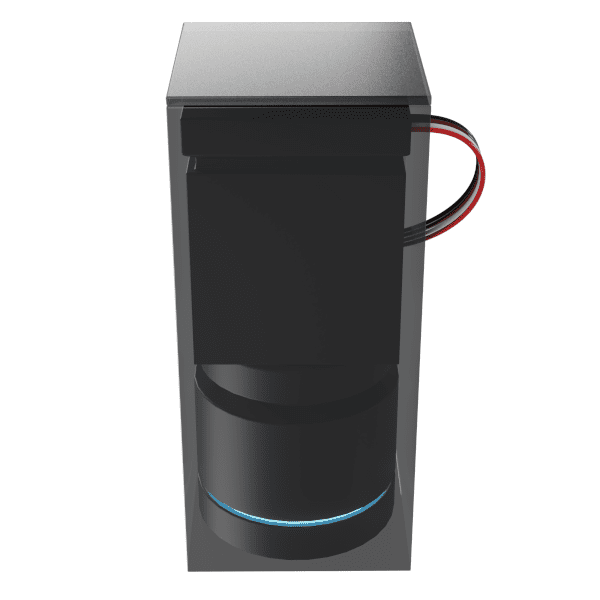

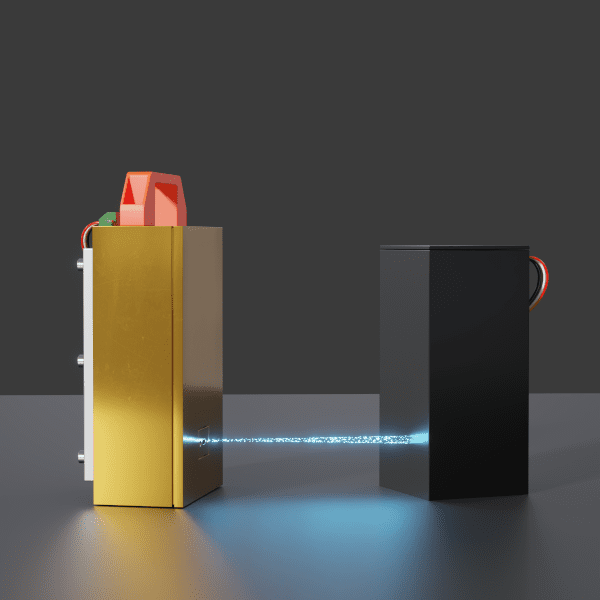

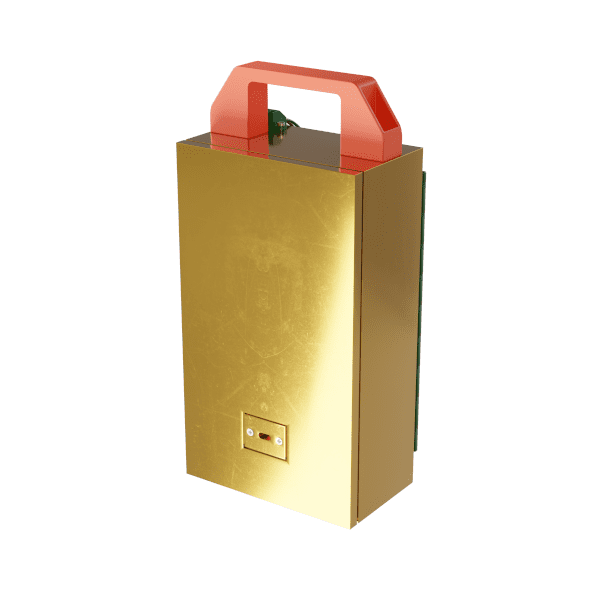

The Bbull Alpha-X system uses a 1 mm x-ray beam that penetrates the container to verify that the product reaches the correct fill level. Its high-precision digital inspection distinguishes between underfill and overfill with separate reject bridges and is suitable for installations where foam may occur.

The Windows 10-based operating system ensures stable and reliable performance across all applications and can inspect:

  • Bottles with crown caps or other metal closures
  • Beverage cans
  • Food cans

Why Choose the Bbull Alpha-X Level Control System

icon intuitive use

7″ or 10″ touchscreen display; 1GB RAM. The Windows 10 interface of the Bbull Alpha-X level control system is designed to reduce errors and downtime.

icon integration

A powerful and fine x-ray beam accurately checks the fill level of each product

icon beverage inspection

Bbull Alpha-X manages different inspection sensors for multiple applications, such as fill level, cap or label verification.

Technical Information

Max inspection speed 120,000 pcs/h
Min container height 40 mm
Max container width 120 mm
Operating temperature 5 – 42°C
Power supply 230 VAC
Power consumption 65 VA
Protection class IP65

The Alpha Line control unit manages both fill level verification and closure integrity.

Alpha Line controls the different sensors and enables complete inspection of products in the beverage sector.

Through its intuitive HMI, up to 14 sensors can be connected and managed for fill level Alpha-X and closure integrity Alpha CIS in a cascade system.

The unit is easy to install on existing lines and is height-adjustable for quick format changeovers.

Alpha-Line control unit
