Pulse2 KRS Metal Detector


Accurate and compact metal detection for free-falling food products

The Pulse2 KRS metal detector by Pulsotronic is designed to inspect free-falling, granular, or powdered food products such as spices, flour, cereals, or dry ingredients.
It can be installed between the dosing system and the flow-pack machine or directly along vertical conveying pipes, ensuring precise inspection even in limited production spaces.

The ring-shaped structure and compact design ensure seamless integration into existing production lines, while FDA-certified materials guarantee food safety and hygiene.

When the bulk product passes through the sensor, the M-Pulse2pro control electronics detect any metallic contaminants, differentiating between ferrous and non-ferrous metals and automatically compensating for product effect. The product tube, made of FDA-approved plastic, is tool-free removable for fast and easy cleaning.

The remote control unit, connectable via cable up to 5 m, can be positioned ergonomically and includes visual and acoustic alarms to signal detection events.

Why Choose the Pulse2 KRS Metal Detector

target achievement iconThe ring-shaped system allows for the detection of ferrous, non-ferrous, and stainless steel contaminants with outstanding accuracy, even when they are extremely small, ensuring product safety before packaging.

integration iconThe compact design of the Pulse2 KRS metal detector allows for direct installation between the dosing unit and the flow-pack machine or along vertical conveying pipes. The product tube, tool-free removable and made of FDA-approved material, ensures fast cleaning and complete process hygiene.

technician iconThe remote control unit integrates product effect suppression and Ethernet connection, ensuring stable operation, no false alarms, and continuous control even under demanding production conditions.

Technical Information

Mechanical data KRS 100 KRS 150 KRS 200 KRS 250
Height (L) 245 mm 265 mm 370 mm 420 mm
Sensor opening (D) 100 mm 150 mm 200 mm 250 mm
Diameter (E) 127 mm 177 mm 227 mm 302 mm
Diameter (F) 110 mm 160 mm 210 mm 260 mm
Dimensions (A × B) 388 × 286 mm 460 × 358 mm 570 × 468 mm 703 × 600 mm
(C) 220 mm 300 mm 410 mm 535 mm
(G) 29 mm 30 mm 30 mm 30 mm
(H) 36 mm 35 mm 30 mm 35 mm
Metal Free Zone (M) for static components 80 mm 120 mm 160 mm 200 mm
Metal Free Zone (M) for moving components 120 mm 180 mm 240 mm 300 mm
Connection flange / tube / top / on request
Storage temperature -10 °C ÷ +60 °C
Operating temperature 0 °C ÷ +60 °C
Protection rating IP65
Control unit Powered by control unit, connected via 5 m cable
Sensitivity (M-Pulse2pro) FE 0.6 mm / SS 0.9 mm FE 0.8 mm / SS 1.2 mm FE 1.0 mm / SS 1.8 mm FE 1.2 mm / SS 2.0 mm

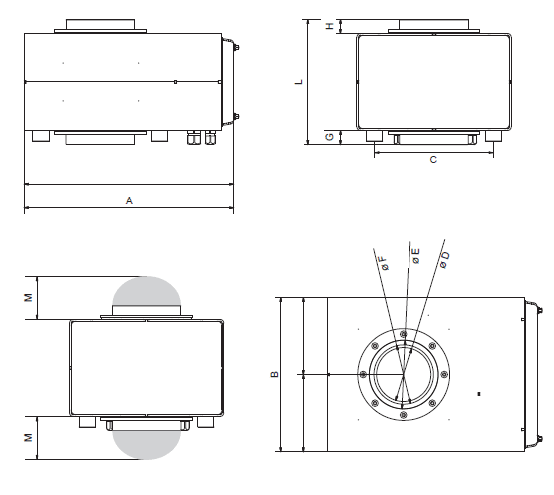

technical specifications and dimensions Pulse2 KRS metal detector
