Pulse Inflex Metal Detector


Metal detector for pumped food products

The Pulse Inflex metal detector for inspecting pumped food products is designed for the quality control of high-viscosity foods such as minced meat, sausage mixtures, marzipan, sauces, and soups. It is ideal for integration with stuffers, fillers, or transfer pumps, ensuring reliable detection of metallic contaminants even under high-pressure flow conditions.

Thanks to M-Pulse2pro technology, the system ensures maximum sensitivity and measurement stability, with vibration and product-cluster filtering functions to minimise false rejects. Its stainless-steel IP69K-rated structure makes it suitable for demanding production environments and frequent washdown operations.

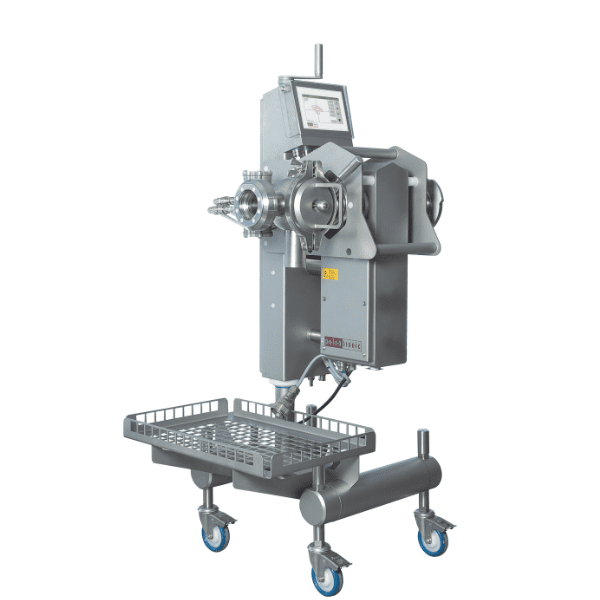

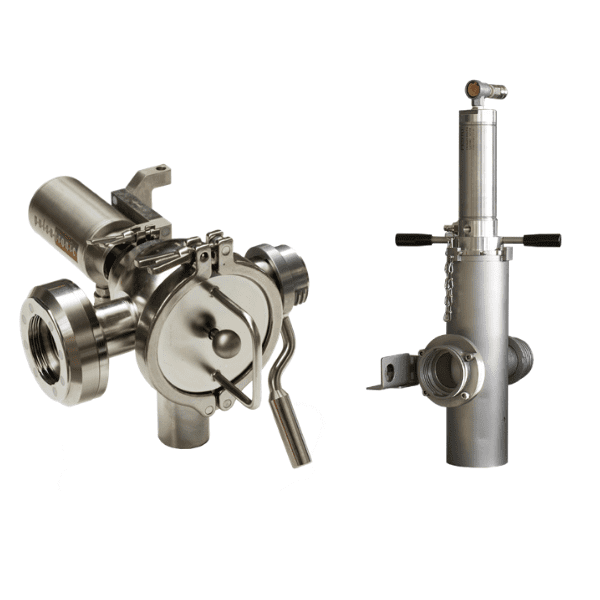

The Inflex 65-3 model can be adjusted in height (950–1250 mm) via a handwheel and is compatible with all major filler brands. The system can be equipped with different automatic reject valves or direct connection to the stuffing machine. Alternatively, when metal contaminants are detected in pumped products, the cycle can be paused to allow manual removal of the affected material.

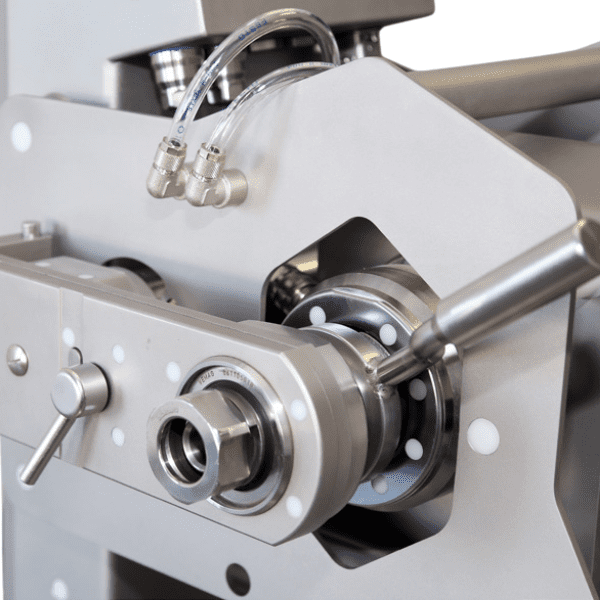

The high-strength stainless-steel product pipe withstands pressure up to 55 bar (40 bar for rotary valves) and is available with RD 80 × ¼” or standard HP connections.
The entire structure is mounted on wheels and easily movable, allowing quick adaptation to different production lines.

Why Choose the Pulse Inflex Metal Detector

target detection iconThe Pulse Inflex metal detector for pumped food products is designed for integration into filling, stuffing, or high-viscosity food pumping lines such as sausage meat, sauces, or dough. It ensures maximum detection accuracy even with continuous high-pressure flow.

integration system iconThe M-Pulse2pro technology with vibration filter and “product clustering” recognition provides stable control, reducing false rejects even under dynamic line conditions or with dense products.

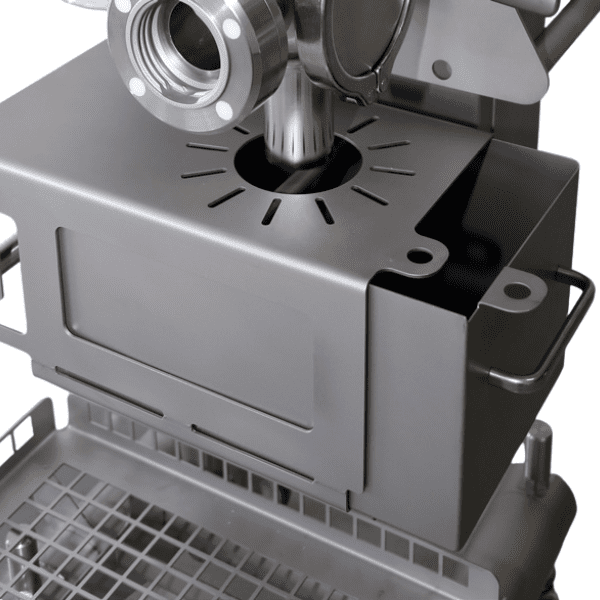

technician iconAll components are made of stainless steel with an IP69K protection rating and a hinged reject system for fast cleaning and tool-free installation. The adjustable height and mobile frame make it easy to integrate into any line.

Technical Information

Type M-Pulse2pro Inflex 65
Mechanical Data
Inlet height 950 – 1250 mm (height adjustable with handwheel)
Maximum working pressure 55 bar (rotary valve 40 bar)
Pipe connection Rd 80 × 1/4” / HP
Internal pipe diameter 57 mm
Weight 150 kg
Operating Conditions
Storage temperature -10 – 60 °C
Operating temperature -10 – 50 °C
Protection rating IP69K
Filler connection cable Included (cable and connector) – specify filler model when ordering
Electrical connection 230 VAC; 50 – 60 Hz; 100 W
Pneumatic connection Max 6 bar, filtered air free from water and oil; self-sealing coupling – NW 7.2 connection
