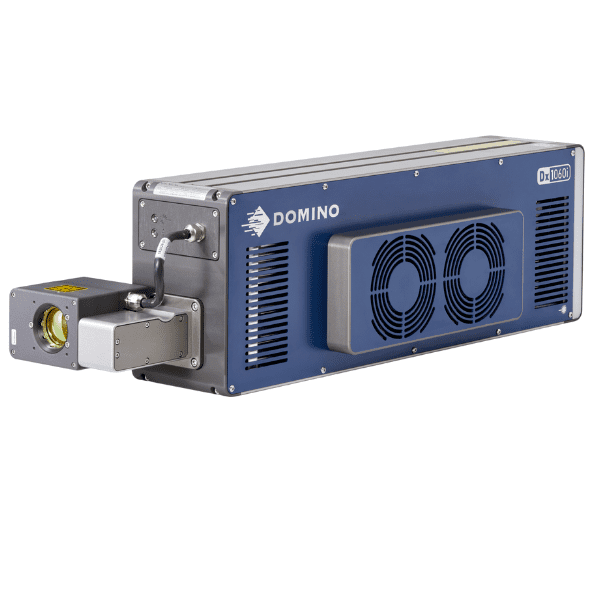

Domino Dx1060i Industrial CO₂ Laser Coder – 100 Watt


Domino Dx1060i: 100 Watt Laser Coder for Lightning-Fast Marking

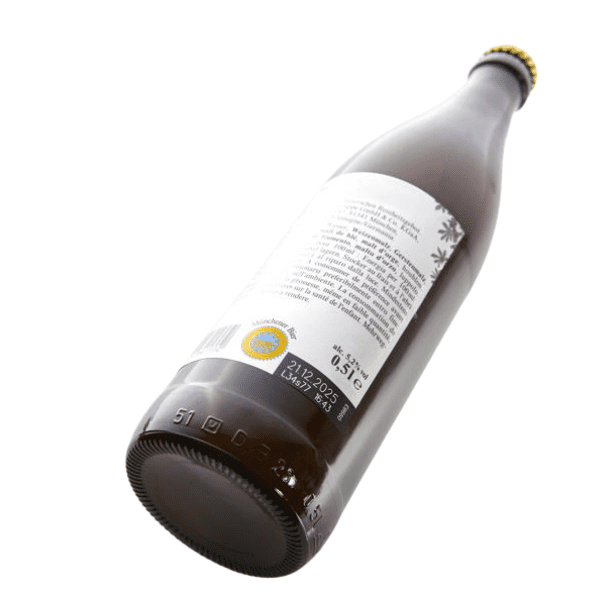

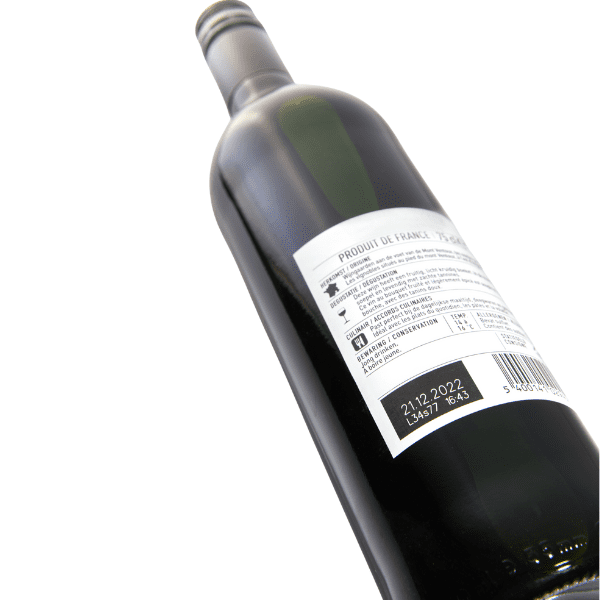

Domino Dx1060i is a 100 Watt CO₂ laser coder designed to deliver high-quality, continuous marking even in the most demanding production environments. Its power ensures sharp and precise codes on challenging materials such as PET, HDPE, glass, paper, and multilayer surfaces, maintaining full stability even at very high speeds. This makes it an ideal solution for high-throughput lines, where code readability and permanence are essential for traceability and product safety.

The system uses advanced algorithms that optimise the laser beam and can increase marking speed by up to 30% compared to previous models, while delivering consistent quality regardless of the substrate. Variable data management, 1D and 2D codes, and GS1 standards are fully integrated, as are serialisation and NTP synchronisation for applications where precision is crucial.

Despite its power, the laser is engineered for harsh environments: the marking head is available in IP54 or IP65, while the controller is IP55-rated, allowing reliable operation even in dusty, humid, or wash-down conditions. The system operates reliably up to 45°C, ensuring full uptime even on highly stressed lines.

Thanks to its long laser tube lifetime and advanced diagnostics, the Dx1060i requires very little maintenance.

Why Choose the Domino Dx1060i Industrial CO₂ Laser Coder

achievement icon
100 Watt CO₂ laser for high-speed lines
High power and advanced optical control ensure sharp, stable marking even on difficult materials.

integration icon
Wide integration flexibility
More than 50 optical configurations, 360° rotatable head, and compatibility with ERP, MES, and industrial protocols.

technical support icon
Smart monitoring and reduced maintenance
Cloud diagnostics, coding automation, and reliable operation in harsh environments up to 45°C.

Technical Information

Laser 100 Watt CO₂
Laser technology CO₂, wavelengths 9.3 μm, 10.2 μm, 10.6 μm
Expected lifetime 50,000 hours MTBF
Supported content High-speed optimised fonts, 1D/2D codes (GS1, DataMatrix, QR), graphics, logos, variable data, serialisation
GS1 support GS1 Digital Link and GS1 traceability standards
Focal lengths From 80 mm to 600 mm
Marking field From 57×57 mm to 379×582 mm

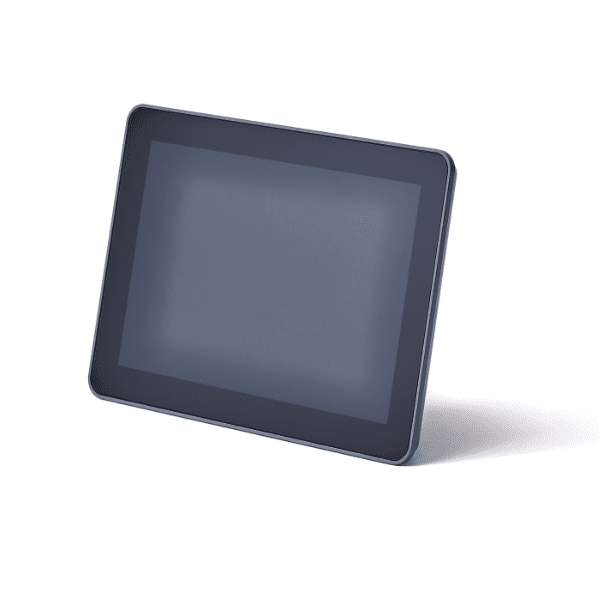

User interface Web-based interface; optional 10.1’’ touch panel
Head orientation 360° rotatable head with more than 50 optical configurations

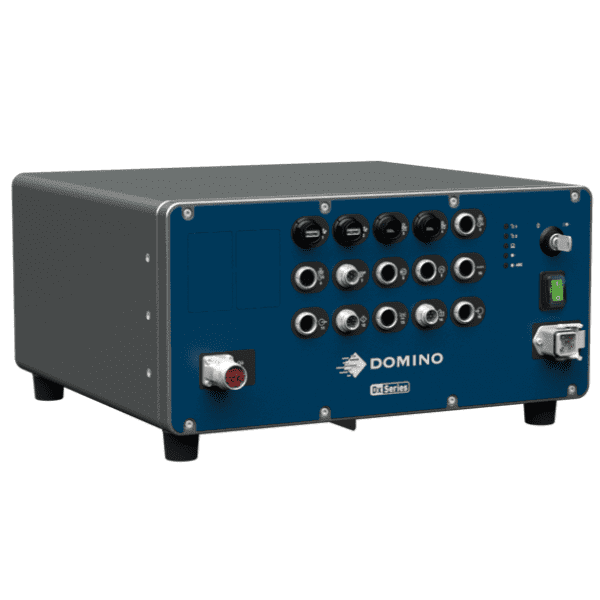

IP rating Laser IP54 (optional IP65), controller IP55
Operating temperature 5°C – 45°C
Operating humidity Max 90% RH non-condensing
Power supply 90–264 V, 50/60 Hz
Inputs/outputs Inputs/outputs for extraction, compressed air, chiller, encoder, product detection, beacon, interlock, GPIO
Interfaces and protocols Ethernet, USB, RS-232, EtherNet/IP™, EDC, Dynamark Protocol
Software features Automation, Domino Cloud, advanced security, external data capture
Accessories Extraction systems, airknife, mounts, brackets, cabling, dedicated optics

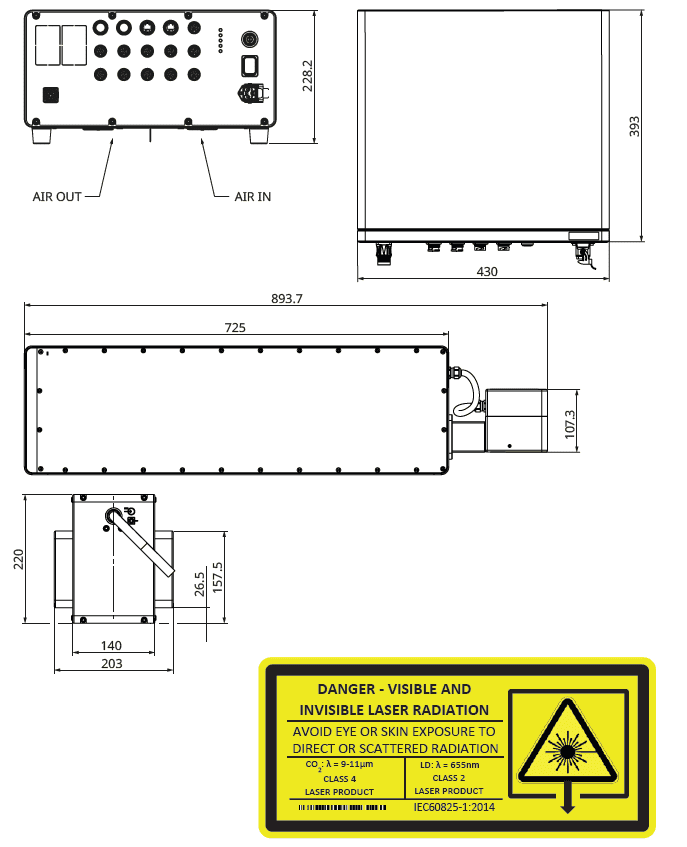

dx1060i technical specifications
