GSI Color Digital Printer for Secondary Packaging
GSI industrial printers for direct, flexible and sustainable color coding

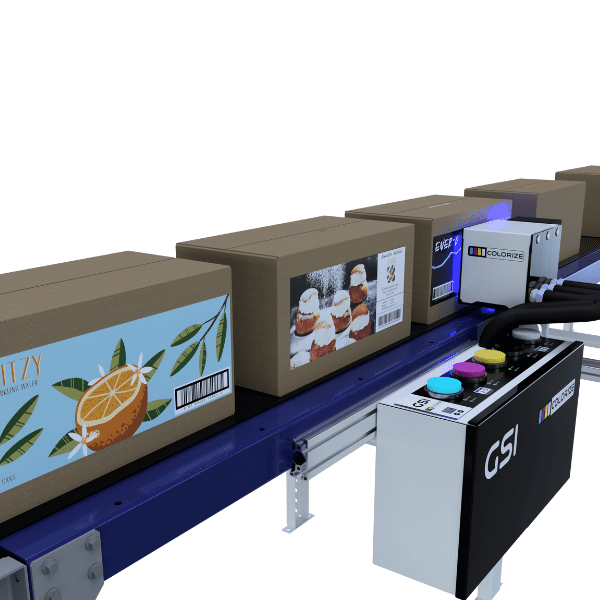

If you are looking for a high-performance digital printer for secondary packaging, the GSI range is the right answer. Compact, integrable and flexible systems designed to print directly on the packaging, even in four-color process and on dark surfaces, without labels and with variable data.
With Colorize™ CMYK, Colorize™ CMYK+W and NoLabel™ technologies, printing on boxes and cartons becomes fast, sustainable and highly customizable.
All models can be controlled via touchscreen, PC, tablet or smartphone and are compatible with standard image formats such as PNG, JPG and TIFF. The GSI Colorize.IT software enables advanced and flexible message management. All versions print at 1000 FPM (304 m/min) with resolution up to 180 VDPI x 3600 HDPI, ensuring sharp and legible prints even at high line speeds.
Reduce environmental impact and simplify logistics by using standard unprinted boxes instead of pre-printed ones. Less storage, less waste, more simplicity on the production line. GSI printers also manage variable data, barcodes and real-time product information, even integrating directly with major ERP systems.
Why Choose a GSI Digital Printer for Secondary Packaging
Eliminates labels and ribbons: prints directly on cartons and secondary packaging with high-contrast graphics, variable data, and barcodes.
CMYK and SmartWHITE technology for flawless color rendering, even on dark backgrounds. High print quality even at high speeds.
Reduce SKUs and storage by using neutral boxes. GSI printers integrate easily in-line and optimize time thanks to remote management and simplified maintenance.
Technical Information
Colorize™ CMYK
The four-color digital printer for secondary packaging, perfect for vibrant color graphics, dynamic branding, and inline or near-line variable data printing.
Printer
| Print resolution | 180 VDPI x 3600 HDPI |
| Print speed | 1000 FPM (304 MPM) |
| Colors per head | 2 |
| Standard colors | Cyan, Magenta, Yellow, Black |
| Print height | 4.25” (108 mm) |
| Message length | No limit |
| Print orientation | Side, top |
| Printable materials | Porous and non-porous |
| Font types | TrueType fonts |
| Barcodes | Code 128, UPC, ITF, Data Matrix, Maxicode, PDF-417 and others |
Electronics
| Per printhead: (2 colors) | Encoder inputs 1 trigger input 4 configurable inputs 6 configurable outputs 1 relay output Ethernet TCP/IP |
| Power supply | 110–240 VAC, single-phase, 50/60 Hz |
User interface
| Controller | Touch Screen, PC, Tablet, Smartphone |
| Message editor | Integrated GSI Colorize.IT, external (XML, JSON, ZPL) |
| Variable data fields | Unlimited |
| Image formats | PNG, JPG, TIFF |
Communication
| Internal database | Based on storage capacity |
| Communication protocol | Ethernet TCP/IP |
| Remote support | Yes |
Options
| Software | Customization via app library |
| Hardware | Custom mechanical, motion and vision integration |
Operating temperature
| Temperature | (5°C – 40°C) |
| Humidity | 90% relative humidity, non-condensing |
Smart UV Light
- Controlled by the GSI print controller
- Smart design with on/off based on image/label length
- Safety shutdown at low speed
- Variable intensity based on speed
Colorize™ CMYK+W
Advanced version with +WHITE ink and SmartWHITE technology, ideal for printing on brown cartons or dark surfaces with excellent color rendering.
Printer
| Print resolution | 180 VDPI x 3600 HDPI |
| Print speed | 1000 FPM (304 MPM) |
| Colors per head | 2 |
| Standard colors | Cyan, Magenta, Yellow, Black, +WHITE |
| Print height | 4.25” (108 mm) |
| Message length | No limit |
| Print orientation | Side, top |
| Printable materials | Porous and non-porous |
| Font types | TrueType fonts |
| Barcodes | Code 128, UPC, ITF, Data Matrix, Maxicode, PDF-417 and others |
Electronics
| Per printhead: (2 colors) | Encoder inputs 1 trigger input 4 configurable inputs 6 configurable outputs 1 relay output Ethernet TCP/IP |
| Power supply | 110–240 VAC, single-phase, 50/60 Hz |
User interface
| Controller | Touch Screen, PC, Tablet, Smartphone |
| Message editor | Integrated GSI Colorize.IT, external (XML, JSON, ZPL) |
| Variable data fields | Unlimited |
| Image formats | PNG, JPG, TIFF |
Communication
| Internal database | Based on storage capacity |
| Communication protocol | Ethernet TCP/IP |
| Remote support | Yes |
Options
| Software | Customization via app library |
| Hardware | Custom mechanical, motion and vision integration |
Operating temperature
| Temperature | (5°C – 40°C) |
| Humidity | 90% relative humidity, non-condensing |
Smart UV Light
- Controlled by the GSI print controller
- Smart design with on/off based on image/label length
- Safety shutdown at low speed
- Variable intensity based on speed
NoLabel™
The world’s first digital printer for secondary packaging that completely eliminates the use of labels and ribbons. Direct, sustainable, and cost-effective coding.
Printer
| Print resolution | 180 VDPI x 3600 HDPI |
| Print speed | 1000 FPM (304 MPM) |
| Colors per head | Custom spot colors |
| Standard colors | White, Black |
| Print height | 4.25” (108 mm) |
| Message length | No limit |
| Print orientation | Side, top |
| Printable materials | Porous and non-porous |
| Font types | TrueType fonts |
| Barcodes | Code 128, UPC, ITF, Data Matrix, Maxicode, PDF-417 and others |
Electronics
| Per printhead: (2 colors) | Encoder inputs 1 trigger input 4 configurable inputs 6 configurable outputs 1 relay output Ethernet TCP/IP |
| Power supply | 110–240 VAC, single-phase, 50/60 Hz |
User interface
| Controller | Touch Screen, PC, Tablet, Smartphone |
| Message editor | Integrated GSI Colorize.IT, external (XML, JSON, ZPL) |
| Variable data fields | Unlimited |
| Image formats | PNG, JPG, TIFF |
Communication
| Internal database | Based on storage capacity |
| Communication protocol | Ethernet TCP/IP |
| Remote support | Yes |
Options
| Software | Customization via app library |
| Hardware | Custom mechanical, motion and vision integration |
Operating temperature
| Temperature | (5°C – 40°C) |
| Humidity | 90% relative humidity, non-condensing |
Smart UV Light
- Controlled by the GSI print controller
- Smart design with on/off based on image/label length
- Safety shutdown at low speed
- Variable intensity based on speed
