Domino K600G Digital Printer
High-resolution digital printing for the Life Science sector
The Domino K600G digital printer is designed to ensure the highest levels of product traceability through high-resolution digital printing and features such as batch registration and advanced integration with vision systems, achieving serialization at the individual cavity level. This allows you to adapt your production line to increasing regulatory requirements, making it ready for future challenges.
But ensuring traceability also means making sure every code remains perfectly legible throughout the product’s shelf life. To achieve this level of durability, we combine the use of Domino inks – developed to guarantee superior adhesion and high contrast – with an optional Corona treatment that increases surface energy. The result? Greater adhesion and high-quality, long-lasting codes.
The Domino K600G digital printer can integrate a vision system to detect errors in real time. Eliminating undetected coding errors not only enhances patient safety and protects your brand and business, but also helps reduce unexpected downtime, drastically cut waste, and improve OEE.
Domino K600G offers a native resolution of 600 dpi and multiple drop sizes to deliver excellent grayscale handling and smart ink usage.

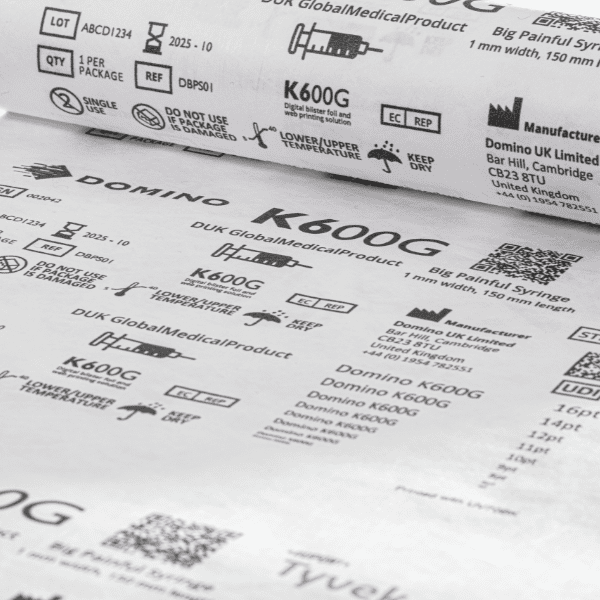

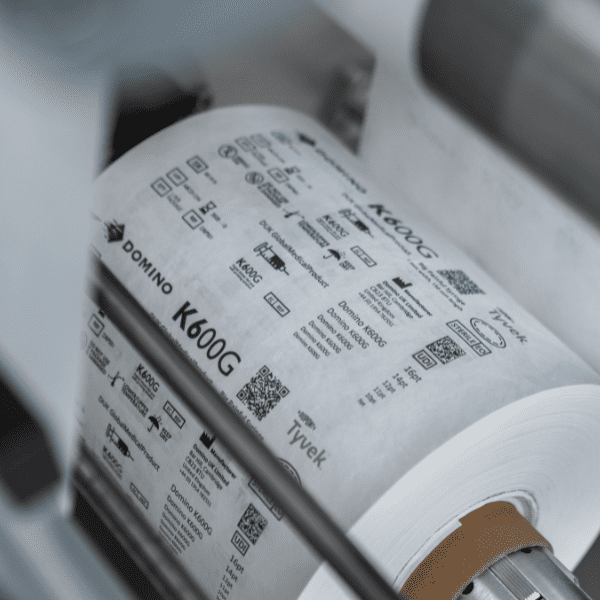

This ensures final results that always meet the highest standards while also reducing consumable costs. The Domino K600G digital printer is capable of printing high-quality variable digital data, alphanumeric texts, a wide range of barcodes and 2D codes, as well as graphics on various types of media such as blister foil, Tyvek, medical paper, PE/PP labels, and more.
Why Choose the Domino K600G Digital Printer?
Native resolution of 600 dpi and multiple drop sizes for superior print quality.
Protect your customers and your brand with a cutting-edge digital printing system.
We have made operator safety a top priority by developing new and unique equipment for the Domino K600G digital printer.
Technical Information
| Feature | K600G OL/NL | K600G TOLc | K600G TOLa | K600G IL | K600G SBCS |
|---|---|---|---|---|---|
| Maximum line speed | 60 m/min (197 ft/min) | ||||
| Physical print resolution | 300 dpi – 600 dpi | ||||
| Nominal drop sizes | 6, 7, 11, 14 pl (14 pl available only at reduced speeds) | ||||
| Image width | From 108 mm (4.25”) to 782 mm (30.81”) | ||||
| Material width | From 20 mm (0.79”) to 800 mm (31.49”) | ||||
| Printing direction | Left to right, right to left | ||||
| Material | Coated and uncoated paper, film, and plastic | Pre-sealed blister packs | |||
| Ink supply | 1 or 10 liter bottles (depending on ink type) | ||||
| Ink type | UV LED curable / CMR-compliant / water-based | ||||
| Standard features | Automatic cleaning, i-Tech StitchLink, grayscale, multiple drop sizes, air-cooled UV lamp, guaranteed lifespan 30,000 hours or 3 years, easy image and batch change, code library, variable and fixed print images |
||||
| Additional features | Innovative waste tracking system transferred to blister machine | Reduced size compared to TOL version | Web tension control Optional Corona Optional web cleaning |
Compatible with thermoformers and blister machines | Multi-piece holder Vacuum belt Smart IIoT tracking Various I/O options |
| Dimensions | L:114 cm W:163 cm H:190 cm | L:120 cm W:152 cm H:120 cm | L:178 cm W:152 cm H:110 cm | L:50 cm W:135 cm H:50 cm | Variable depending on application |
| Electrical supply | 400–480V 16A / 32A, depending on operation | ||||
| Compressed air | 6–8 bar | ||||
| Temperature range | 20–30°C (68–86°F) | ||||
| Optimal temperature | 21°C (70°F) | ||||
| Humidity range | 40–60% | ||||
| Auxiliary equipment | UV dryer, UV LED pinning, IR/anti-static sensor, web cleaning and guiding, dancer roller, web extension, visual inspection (barcode reader / vision), serialization readiness, splice detection sensor |
||||
| Industry 4.0 (Pharma 4.0) | OT Cyber Secure by Design, AI/Machine Learning, line SCADA system – Batch Manager, Edge Gateway (OPC-UA, MQTT, etc.) | ||||
| Documentation | Standard documentation package compliant with V-Model available in English and other languages | ||||
