Delta-Max Real-Time Print & Apply System


Flexible solution for on-demand label printing and application

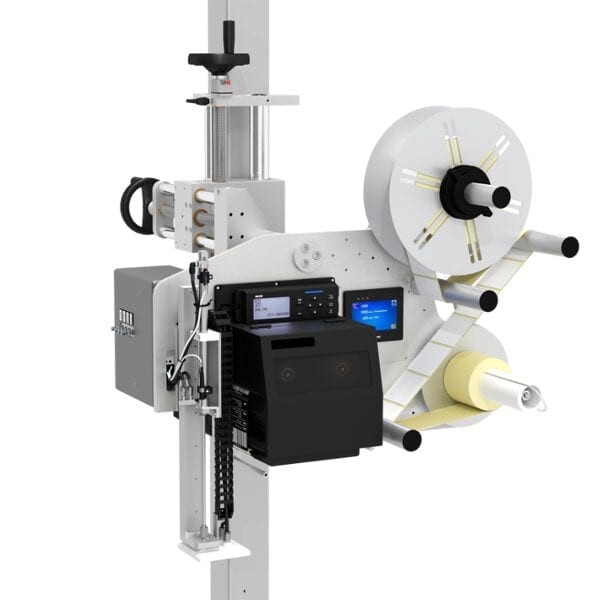

The nimax Delta-Max is designed for real-time printing and application of variable data labels.

It provides a versatile platform for the unique identification of products and secondary packaging, offering a wide selection of applicators and seamless integration into high-performance Ni-Max labelling lines.

Delta-Max is not just a unit but a complete family of print & apply systems, delivering reliable, on-demand coding for fast-moving production environments.

Why Choose the nimax Delta-Max Real-Time Print & Apply System

label application options icon

With a wide range of electro-pneumatic applicators, the Delta-Max can handle products that are static or moving, with fixed or variable distances, and can apply both single- and multi-format labels. The system is compatible with 4” or 6” thermal transfer printing modules.

Carl Valentin printer modules icon

For the printing engine, nimax relies on Carl Valentin modules, with SPX II 108 and SPX II 162 models as the standard choice. These printers are recognised for their robustness, reliability and adaptability in industrial environments.

optional accessories icon

Optional accessories: label design software – label management software – 1D/2D barcode scanners – alarm/pre-alarm signals – support structures.

Technical Information

System type real-time print & apply unit
Available versions right-hand and left-hand
Available models nimax Delta-Max PH-CD00 with integrated controls – nimax Delta-Max PH-CD12 with remote touchscreen control panel
Maximum media width 162 mm, depending on printer and applicator configuration
Applicator options range of pneumatic applicators, contact or non-contact, single- or multi-format: air-blow; air-blow with pneumatic cylinder; oscillating roller; pneumatic cylinder with contact; rotary arm; multi-format oscillating arm
Recipe memory capacity available with PH-CD12 model
Roll holder diameter 300 mm external – 76 mm core
Rewinder motor-driven with collection disc
Low roll warning optional
Encoder optional
Power supply 240 V – 50 Hz – 800 W
Pneumatic supply dry and filtered air, 5 bar, consumption depending on applicator type
