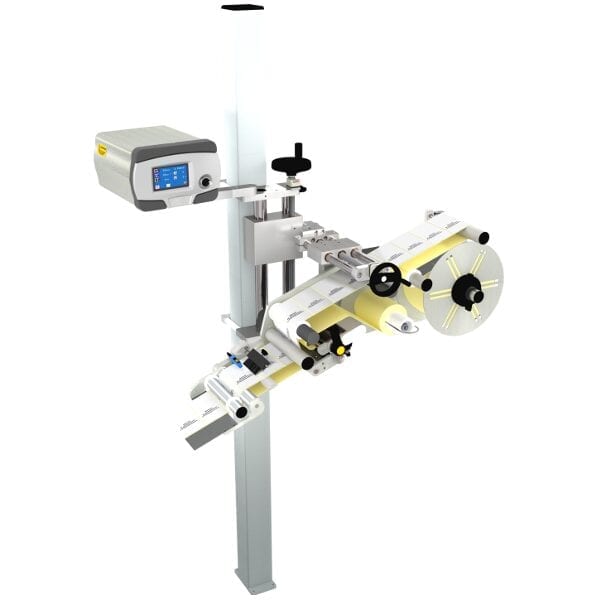

Beta-Max Labelling Head


The nimax Beta-Max head is ideal for the most complex labelling lines

The nimax Beta-Max label applicator is the perfect solution for high-capacity lines, handling up to 25,000 products per hour.

Nimax Beta-Max can be supplied in over 120 different configurations, depending on the required application, and is typically installed on complex NI-MAX labelling lines due to its performance and reliability.

When combined with 4” or 6” print modules, nimax Beta-Max becomes a powerful print & apply unit, where the printing and application phases are independent, ensuring standard operation up to 40 metres per minute.

Its high-speed microprocessor-based electronics, combined with robust and precise stepper motors, deliver excellent application accuracy, with line speeds of up to 50 metres per minute.

Why Choose the nimax Beta-Max Label Applicator

integration icon
The nimax Beta-Max head offers features and performance that make it ideal for complex labelling lines. With capacity to manage parameters for 40 different products, Beta-Max is the natural choice for multi-product lines.

label width options icon
Nimax Beta-Max is available in three main models, with label web widths of 100, 200, or even 300 mm.

print module integration icon
Optional print modules from Carl Valentin or Zebra (4” or 6”) transform this head into a highly efficient print-buffer labeller, capable of reliable operation at line speeds of 50 m/min (standard). Also available in a 4.0 ready version.

Technical Information

Available versions right and left
Label width max 100 mm (Beta-Max 100) – 200 mm (Beta-Max 200) – 300 mm (Beta-Max 300)
Maximum speed 35–50 m/min depending on version and accessories
Controls touchscreen display
Memory capacity 40 formats
Machine protection IP55
Roll holder diameter 300 mm (standard). Other options available
Standard alarms end of roll – paper break – open drive
Missing label recovery standard
Low roll warning optional
Pneumatic applicators optional
Encoder optional
Transparent label sensors optional
Printer module versions optional with 4” or 6” thermal transfer modules
Power supply 240 V – 50 Hz – 400 W
Optional accessories Mechanical or pneumatic applicators – Thermal transfer modules – Transparent label sensors – Alarm/pre-alarm signals – Support structures – Product sensors
