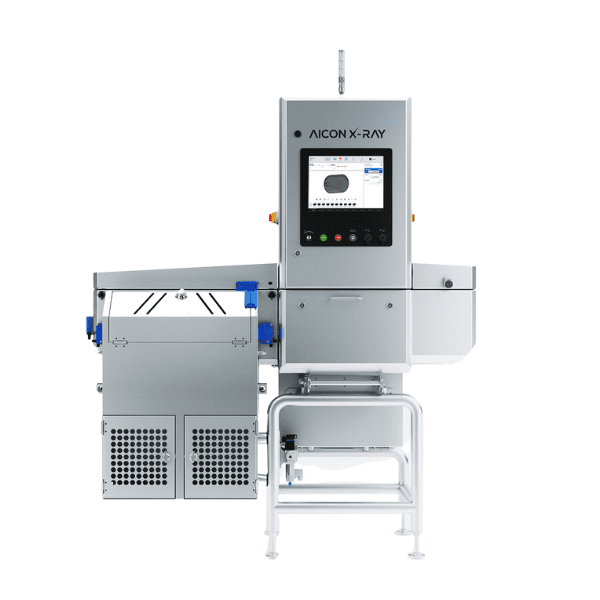

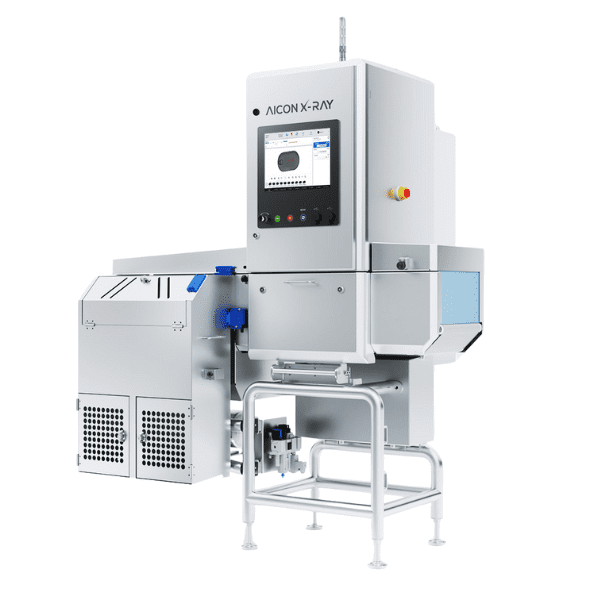

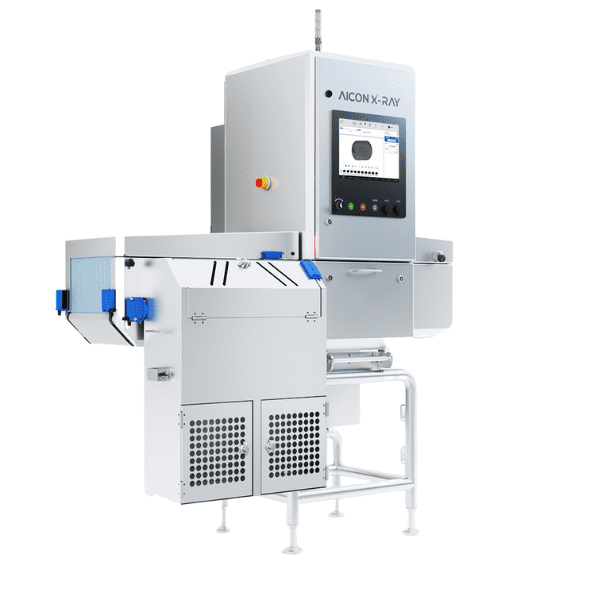

Aicon Scan X-ray Systems


X-ray systems for the inspection of food, pharmaceutical products, and packaging

Why Choose the Aicon Scan X-ray Systems

icon product range flexibility
Designed to handle a wide variety of products, formats, and packaging materials, Aicon Scan X-ray inspection systems reach speeds of up to 1,000 ppm and deliver stable inspection performance even on high-throughput lines. The modular architecture makes it easy to integrate the systems into both new installations and existing lines.

icon hygienic stainless steel design
All models in the series are built in stainless steel with a hygienic design and a protection rating up to IP69, ideal for wet environments and frequent wash-down. Continuous self-diagnostics and an inverted inspection logic ensure safe, consistent operation, lowering the risk of errors and simplifying maintenance.

icon high-speed inspection for multiple packaging types
Aicon Scan X-ray inspection systems are easily configured for different packaging types for food and pharmaceutical products (trays, flow-wraps, pouches, doypacks, and cartons), while maintaining inspection speeds up to 1,000 ppm. With 10 Gb/s processing capability, they deliver sharp images and real-time analysis, even on high-speed lines and in intensive production environments.

Technical Information

Detector resolution 0.4 mm – 0.8 mm – Dual Energy or 0.1 mm photon-counting detector (AICON PCT™)
X-ray generator 35-160 kV / 1.0-8.0 mA, max. 500 W
Number of scan beams 1
Beam direction Vertical
X-ray emission µSv/h, product compliant with EU regulatory requirements
Operating environment Temperature: 0 – 45°C, humidity: 30 – 85% non-condensing
Cooling method Dry air cooling system
Protection class IP65 (IP69K optional)
Frame material Bead-blasted stainless steel 1.4301 (AISI 304)
Operating system Windows 10 Enterprise
Software AiSoft
Product program memory 1000
Disk space 500 GB, expandable
Communication interfaces Ethernet card 10/100/1000 Mbps, USB 3.0
Air supply Min. 6 bar for pneumatic ejectors
Power supply Single phase 230 VAC ±10%, protection 16 A
Performance ≤ 150 m/min
Detection field 300 mm at belt level
Dimensions 1600 mm x 1090 mm x 2230 mm (L x W x H)
Display 17″ TFT LCD touchscreen
Performance ≤ 150 m/min
Detection field 400 mm at belt level
Dimensions 1700 mm x 1235 mm x 2355 mm (L x W x H)
Display 17″ TFT LCD touchscreen
Performance ≤ 150 m/min
Detection field 500 mm at belt level
Dimensions 1800 mm x 1335 mm x 2430 mm (L x W x H)
Display 17″ TFT LCD touchscreen
Performance ≤ 90 m/min
Detection field 600 mm at belt level
Dimensions 1600 mm x 1275 mm x 2560 mm (L x W x H)
Display 17″ TFT LCD touchscreen
Performance ≤ 90 m/min
Detection field 900 mm at belt level
Dimensions 1600 mm x 1600 mm x 2560 mm (L x W x H)
Display 19″ TFT LCD touchscreen
